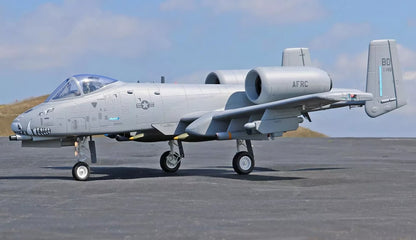

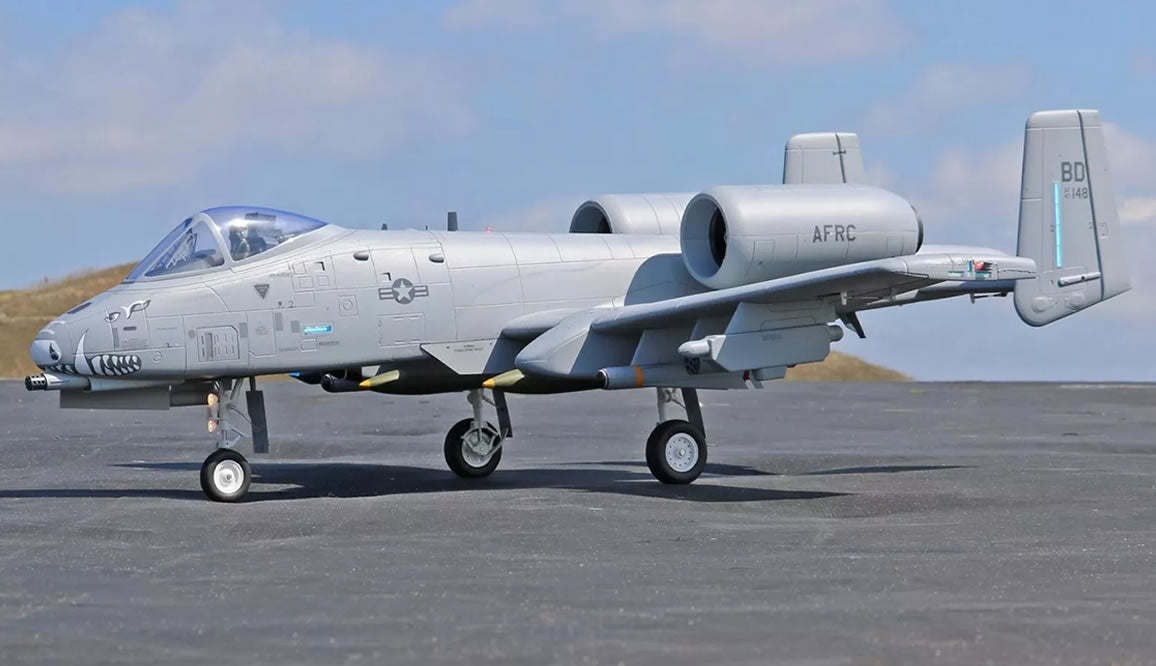

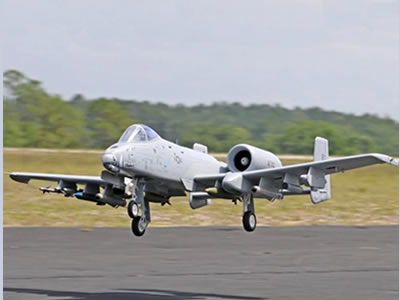

Freewing A-10 Thunderbolt II twin 80mm V2 EDF Jet

Model Scale

1/10

Wingspan

1700mm / 66.9in

Length

1551mm / 61.1in

Flying Weight

CG (Center of Gravity)

78mm back from the leading edge of the wing root, with the aircraft upright and gear down

Power System

Electronic Speed Control

2 x 100 Amp ESCs with thrust reversing and EC5 Connectors (Excluded for Kit Plus Version)

Propeller / EDF

2x 80mm EDFs with 9 Blade Fans (Excluded for Kit Plus Version)

Servos

• Nose Gear Steering - 17g Digital Metal Gear Smart Servo with 600mm (22in) lead
• Nose Gear Door - 9g Digital Hybrid Gear Smart Servo with 200mm (8in) lead
• Ailerons - 30g Digital Metal Gear Smart Servo with 100mm (4in) lead
• Flaps (Outboard) - 17g Digital Metal Gear Smart Servo with 400mm (15in) lead
• Flaps (Inboard) - 17g Digital Metal Gear Smart Servo with 200mm (8in) lead
• Elevators - 23g Digital Metal Gear Smart Servo with 200mm (8in) lead
• Rudders - 17g Digital Metal Gear Smart Servo with 400mm (15in) lead

Landing Gear

CNC-Machined aluminum, shock absorbing, retractable landing gear

Required Battery

2 x 6S 22.2V 5000mAh - 6000mAh LiPo with EC5 Connector

Required Radio

6-8 Channels (8 required for thrust reversing and muzzle flash LED)

Ailerons

Yes

Elevator

Yes

Rudder

Yes

Flaps

Yes

Lights

Yes

Hinge Type

Nylon reinforced hinges

Material

EPO Foam

Skill Level

Advanced

Build Time

1 Hour

Recommended Environment

Outdoor

Recommended Runway Surface

Hard and soft surfaces, including maintained grass runways
